Fiche technique

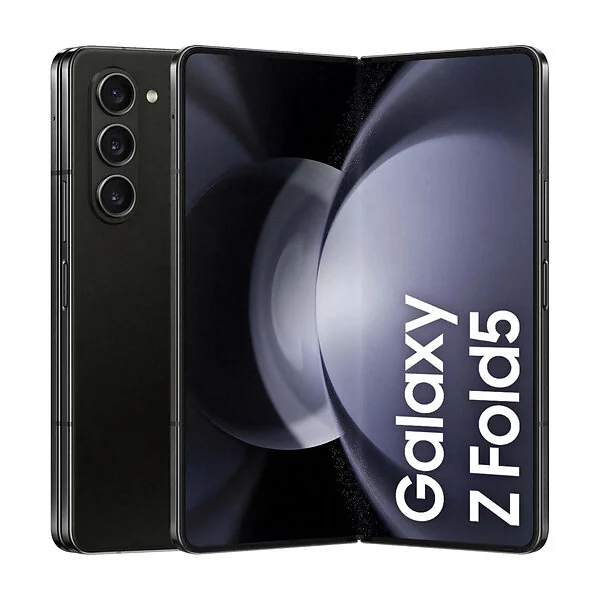

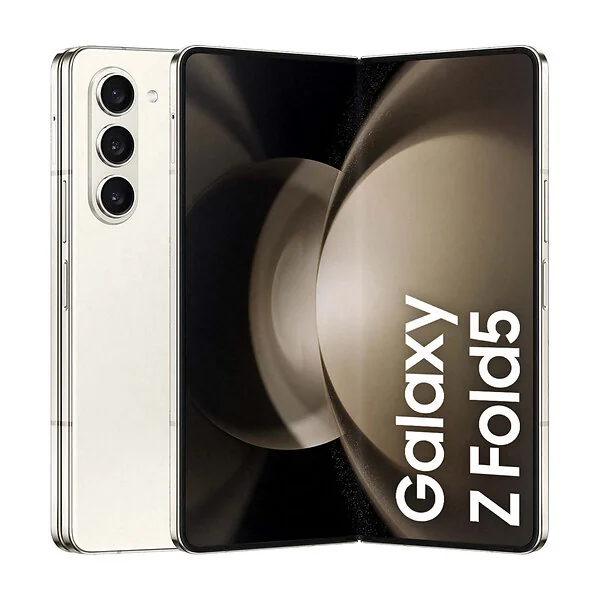

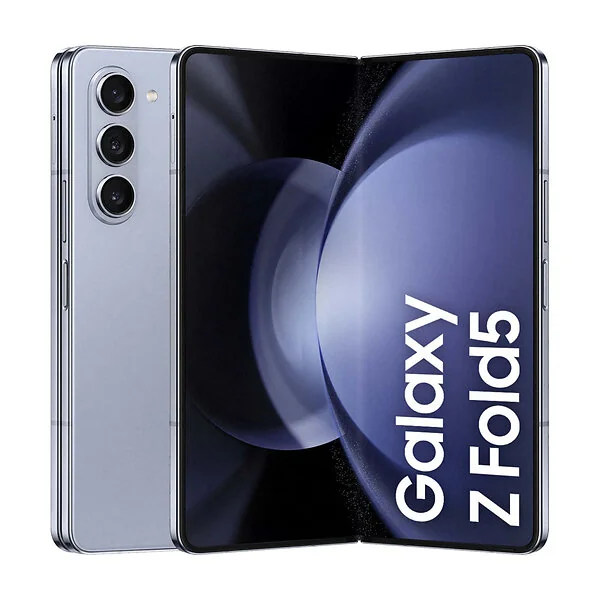

Fiche technique du Samsung Galaxy Z Fold5

Caractéristiques complètes du Samsung Galaxy Z Fold5 et résumé de sa réparabilité : specs détaillées, RepairScore et coût des pièces.

Mis à jour le 25 juin 2026 Sorti en 2023 RepairScore détaillé →

Caractéristiques

Marque	Samsung
Modèle	Samsung Galaxy Z Fold5
Année	2023
Date de sortie	2023, August 11
Taille écran	7.6 inches, 183.2 cm2 (~91.1% screen-to-body ratio)
Type écran	Foldable Dynamic AMOLED 2X, 120Hz, HDR10+
Construction	Glass front (Gorilla Glass Victus 2) (folded), plastic front (unfolded), glass back (Gorilla Glass Victus 2), aluminum frame
Batterie	4400 mAh
Poids	253 g
Dos en verre	Oui
Écran OLED	Oui
Écran incurvé	Non

Body

Sim	Nano-SIM + eSIMNano-SIM + Nano-SIM + eSIM (max 2 at a time)
Build	Glass front (Gorilla Glass Victus 2) (folded), plastic front (unfolded), glass back (Gorilla Glass Victus 2), aluminum frame
Weight	253 g (8.92 oz)
Dimensions	Unfolded: 154.9 x 129.9 x 6.1 mmFolded: 154.9 x 67.1 x 13.4 mm

Brand

Id	93
Name	Samsung

Comms

Nfc	Yes
Usb	USB Type-C 3.2, OTG
Wlan	Wi-Fi 802.11 a/b/g/n/ac/6e, tri-band, Wi-Fi Direct
Radio	No
Bluetooth	5.3, A2DP, LE, aptX HD
Positioning	GPS, GLONASS, GALILEO, BDS

Sound

Loudspeaker	Yes, with stereo speakers

Launch

Memory

CardSlot	No
Internal	256GB 12GB RAM, 512GB 12GB RAM, 1TB 12GB RAM

Battery

Type	Li-Po 4400 mAh
Charging	25W wired, 50% in 30 min, 15W wireless, 4.5W reverse wireless

Cameras

MainCamera
Type	triple
Video	8K@30fps, 4K@60fps, 1080p@60/240fps (gyro-EIS), 720p@960fps (gyro-EIS), HDR10+
Features	LED flash, HDR, panorama
CameraSpecs	50 MP, f/1.8, 23mm (wide), 1/1.56", 1.0µm, dual pixel PDAF, OIS, 10 MP, f/2.4, 66mm (telephoto), 1/3.94", 1.0µm, PDAF, OIS, 3x optical zoom, 12 MP, f/2.2, 12mm, 123˚ (ultrawide), 1/3.06", 1.12µm
SelfieCamera
Type	single
Video	4K@30/60fps, 1080p@30/60fps, gyro-EIS
Features	HDR
CameraSpecs	4 MP, f/1.8, 26mm (wide), 1/3.0", 2.0µm, under display, Cover camera:, 10 MP, f/2.2, 24mm (wide), 1/3.0", 1.22µm

Display

Size	7.6 inches, 183.2 cm2 (~91.1% screen-to-body ratio)
Type	Foldable Dynamic AMOLED 2X, 120Hz, HDR10+
Resolution	1812 x 2176 pixels (~373 ppi density)

Network

Features

Sensors	Fingerprint (side-mounted), accelerometer, gyro, proximity, compass, barometer

Platform

Os	Android 13, up to 4 major Android upgrades, One UI 6.1.1
Cpu	Octa-core (1x3.36 GHz Cortex-X3 & 2x2.8 GHz Cortex-A715 & 2x2.8 GHz Cortex-A710 & 3x2.0 GHz Cortex-A510)
Gpu	Adreno 740
Chipset	Qualcomm SM8550-AC Snapdragon 8 Gen 2 (4 nm)
